Compare Feature Variability Before and After Normalization

Evaluates the effectiveness of normalization by comparing feature variability (measured as %CV) in QC and/or study samples before and after normalization. The comparison is visualized through one of three plot types:

Scatter plot: CV values before vs after normalization
Difference plot: (CV after - CV before) vs mean CV
Ratio plot: log2 of (CV after / CV before) vs mean CV

Features can be grouped and visualized by their fature class using facets.

The resulting visualization helps assess whether normalization improved measurement precision across different features and sample/QC types.

Usage

plot_normalization_qc(
  data = NULL,
  before_norm_var,
  after_norm_var,
  plot_type,
  qc_types = NA,
  facet_by_class = FALSE,
  y_shared = FALSE,
  filter_data = FALSE,
  include_qualifier = FALSE,
  cv_threshold_value = 25,
  x_lim = c(0, NA_real_),
  y_lim = c(0, NA_real_),
  cols_page = 5,
  point_size = 1,
  point_alpha = 0.5,
  font_base_size = 8
)

Arguments

data: A MRMhubExperiment object
before_norm_var: A string specifying the variable from the QC metrics table to be used for the x-axis (before normalization).
after_norm_var: A string specifying the variable from the QC metrics table to be used for the y-axis (after normalization).
plot_type: A character string specifying the type of plot to generate. Must be one of "scatter", "diff", or "ratio". Selecting "scatter" plots the before and after normalization CV values as a scatter plot, "diff" plots the difference between the two CV values against the average CV, and "ratio" plots the log2 ratio of the two CV values against the average CV.
qc_types: A character vector specifying the QC types to plot. It must contain at least one element. The default is NA, which means any of the non-blank QC types ("SPL", "TQC", "BQC", "HQC", "MQC", "LQC", "NIST", "LTR") will be plotted if present in the dataset.
facet_by_class: If TRUE, facets the plot by feature_class, as defined in the feature metadata.
y_shared: Logical; if TRUE, all facets share the same y-axis scale. If FALSE (default), each facet has its own y-axis scale.
filter_data: Whether to use all data (default) or only QC-filtered data (filtered via filter_features_qc()).
include_qualifier: Whether to include qualifier features (default is TRUE).
cv_threshold_value: Numerical threshold value to be shown as dashed lines in the plot (default is 25).
x_lim: Numeric vector of length 2 for x-axis limits. Use NA for auto-scaling (default is c(0, NA)).
y_lim: Numeric vector of length 2 for y-axis limits. Use NA for auto-scaling (default is c(0, NA)).
cols_page: Number of facet columns per page, representing different feature classes (default is 5). Only used if facet_by_class = TRUE.
point_size: Size of points in millimeters (default is 1).
point_alpha: Transparency of points (default is 0.5).
font_base_size: Base font size in points (default is 8).

Value

A ggplot2 object representing the scatter plot comparing CV values before and after normalization.

Details

The function preselects the corresponding variables from the QC metrics and uses plot_qcmetrics_comparison() to visualize the results.

The data must be normalized before using normalize_by_istd() followed by calculation of the QC metrics table via calc_qc_metrics() or filter_features_qc(), see examples below.
When facet_by_class = TRUE, then the feature_class must be defined in the metadata or retrieved via specific functions, e.g., parse_lipid_feature_names().

Examples

# Example usage:
mexp <- lipidomics_dataset
mexp <- normalize_by_istd(mexp)
#> ! Interfering features defined in metadata, but no correction was applied. Use `correct_interferences()` to correct.
#> ✔ 20 features normalized with 9 ISTDs in 499 analyses.
mexp <- calc_qc_metrics(mexp)

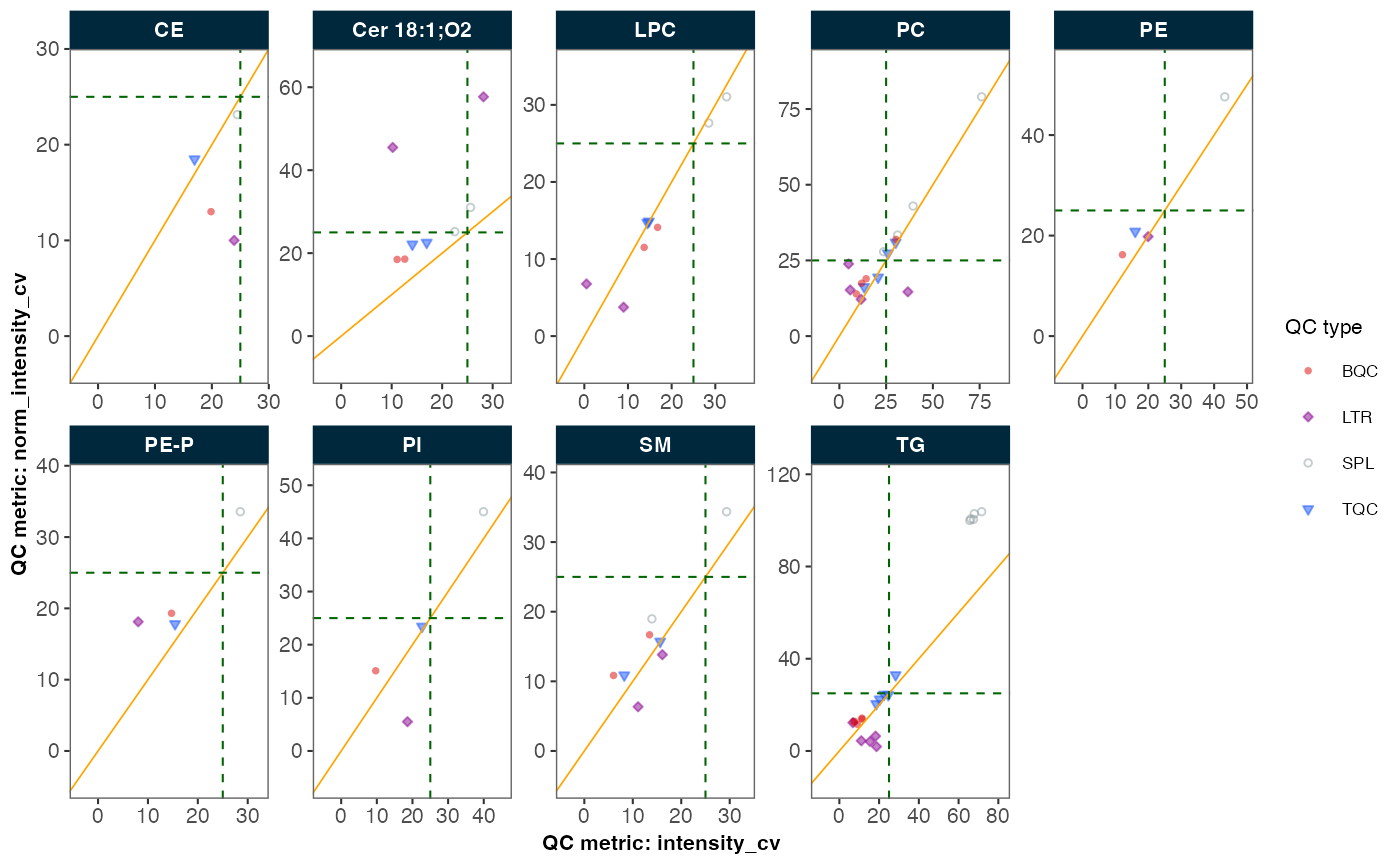

plot_normalization_qc(
  data = mexp,
  before_norm_var = "intensity",
  after_norm_var = "norm_intensity",
  plot_type = "scatter",
  qc_type = "SPL",
  filter_data = FALSE,
  facet_by_class = TRUE,
  cv_threshold_value = 25
)
