Drift and Batch Correction

Tutorial

MRMhub provides functions for run-order drift correction, differing by the employed smoothing algorithm and suited to either QC- or study-sample-based correction, and for batch-effect correction by median centering. The data must be provided via an MRMhubExperiment object; raw data that was imported or processed data can be corrected, such as intensity or conc values. These functions have various options for customization; please refer to the manual page on Drift and Batch Correction for more details. This tutorial first demonstrates the drift-correction methods, then batch-effect correction and how the two are combined.

Time ~20 min  ·  Level Intermediate  ·  Prerequisites Basic workflow

Import data

In this tutorial, we import pre-calculated raw concentration values from a CSV file. This file must contain a column with batch information (batch_id) if batch-wise correction should be applied, see import_data_csv_wide() for more information.

library(mrmhub)

myexp <- mrmhub::MRMhubExperiment()

myexp <- import_data_csv_wide(
  myexp,
  path = "smooth-testdata.csv",
  variable_name = "conc",
  import_metadata = TRUE)

QC-based smoothing

We apply a QC-based drift correction using cubic spline. See correct_drift_cubicspline() for more information.

mexp_drift <- correct_drift_cubicspline(
  myexp,
  batch_wise = FALSE,
  variable = "conc",
  ref_qc_types = "BQC",
  recalc_trend_after = TRUE)
#> ℹ Applying `conc` drift correction...
#> ✔ Drift correction was applied to 3 of 3 features (across all batches).
#> ℹ The median CV change of all features in study samples was -4.69% (range: -8.21% to 1.17%). The median absolute CV of all features decreased from 30.56% to 28.52%.

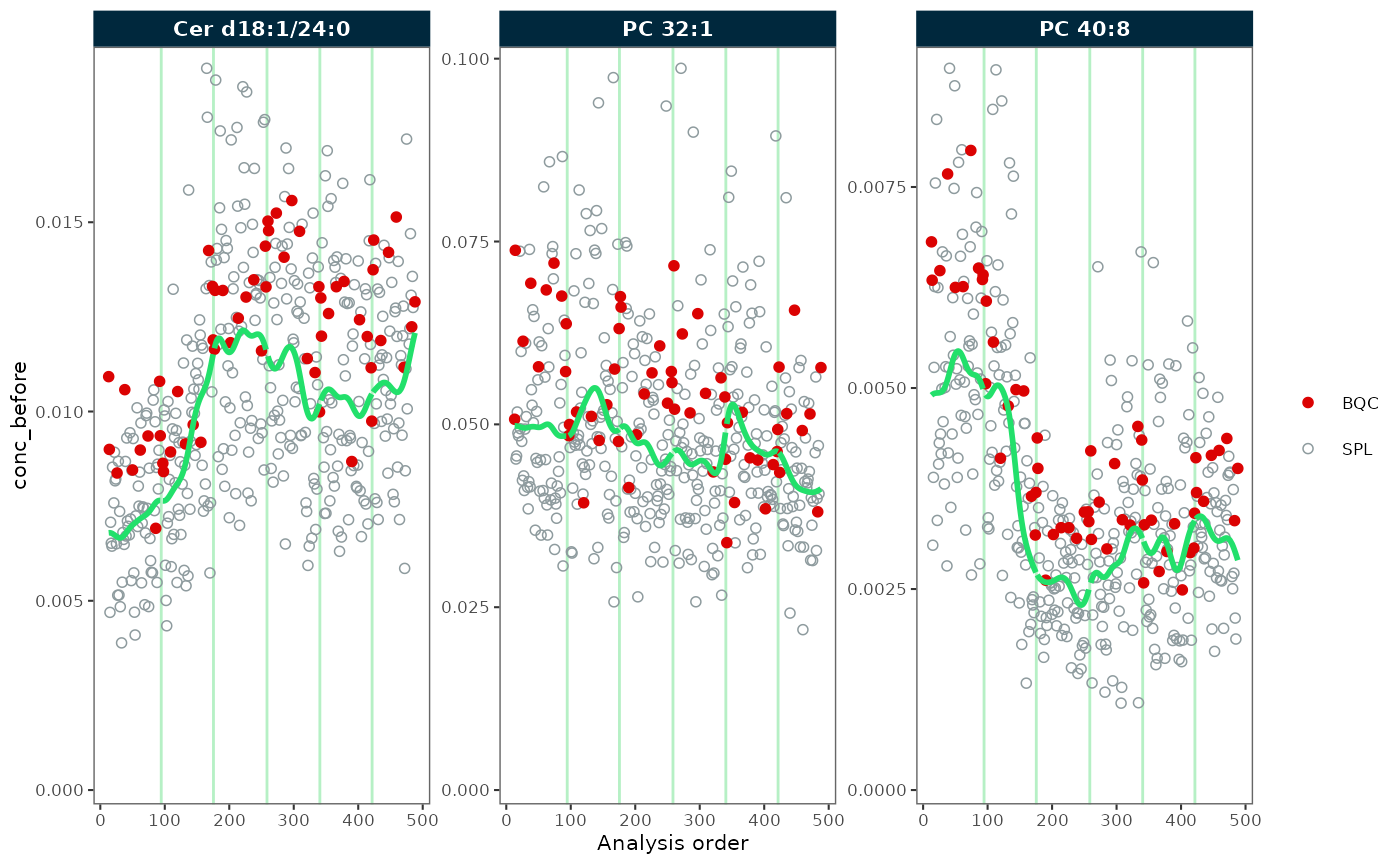

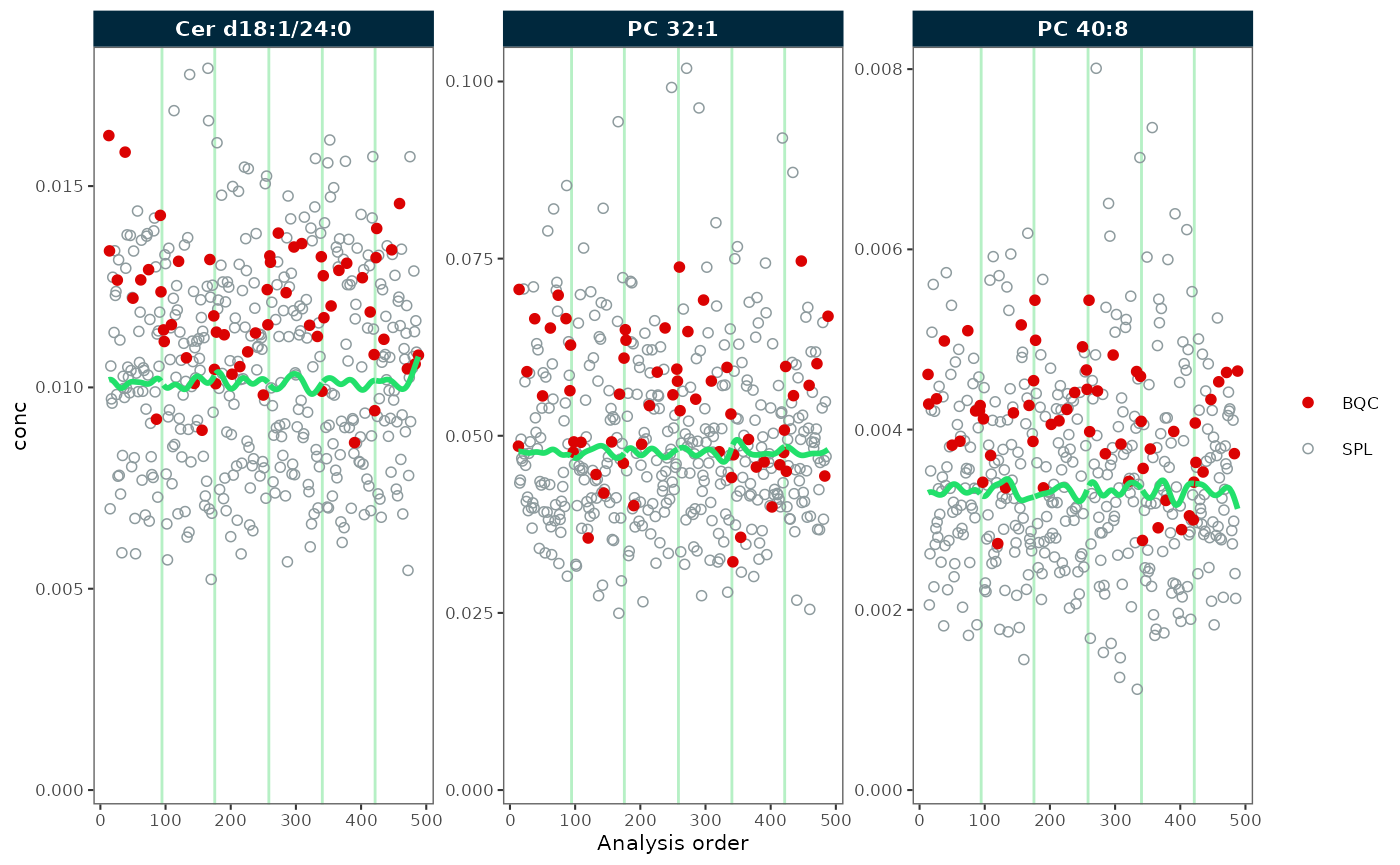

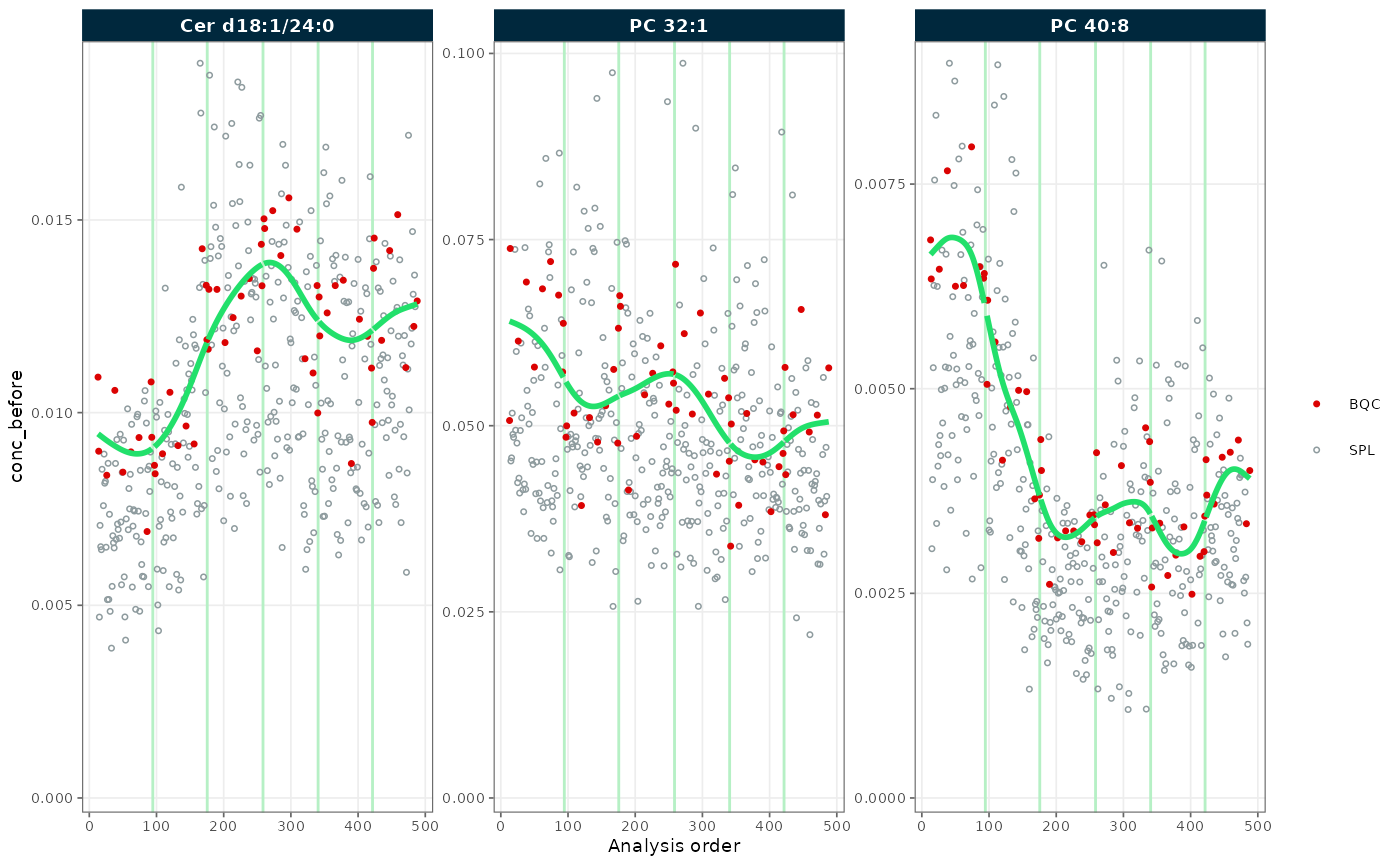

Next, we inspect the data before and after the correction. We observe that the green trendline follows the QC samples (in red). After the correction, the trend has been fully smoothed out, resulting in a straight line.

plot_runscatter(mexp_drift, variable = "conc_before", qc_types = c("BQC", "SPL"),
                rows_page = 1, cols_page = 3, show_trend = TRUE)

plot_runscatter(mexp_drift, variable = "conc", qc_types = c("BQC", "SPL"),
                rows_page = 1, cols_page = 3, show_trend = TRUE)

Sample trend-based smoothing

Above, we observe that the QC samples do not fully represent the trends of the study samples. This discrepancy can occur when the QC samples, which often based on pooled samples, differ in handling or properties from the study samples.

We therefore apply a sample-based drift correction using gaussian kernel smoothing. See correct_drift_gaussiankernel() for more information.

mexp_drift <- correct_drift_gaussiankernel(
  myexp,
  variable = "conc",
  kernel_size = 10,
  batch_wise = FALSE,
  ref_qc_types = "SPL",
  recalc_trend_after = TRUE)
#> ℹ Applying `conc` drift correction...
#> ✔ Drift correction was applied to 3 of 3 features (across all batches).
#> ℹ The median CV change of all features in study samples was -6.18% (range: -11.46% to -1.49%). The median absolute CV of all features decreased from 30.56% to 25.86%.

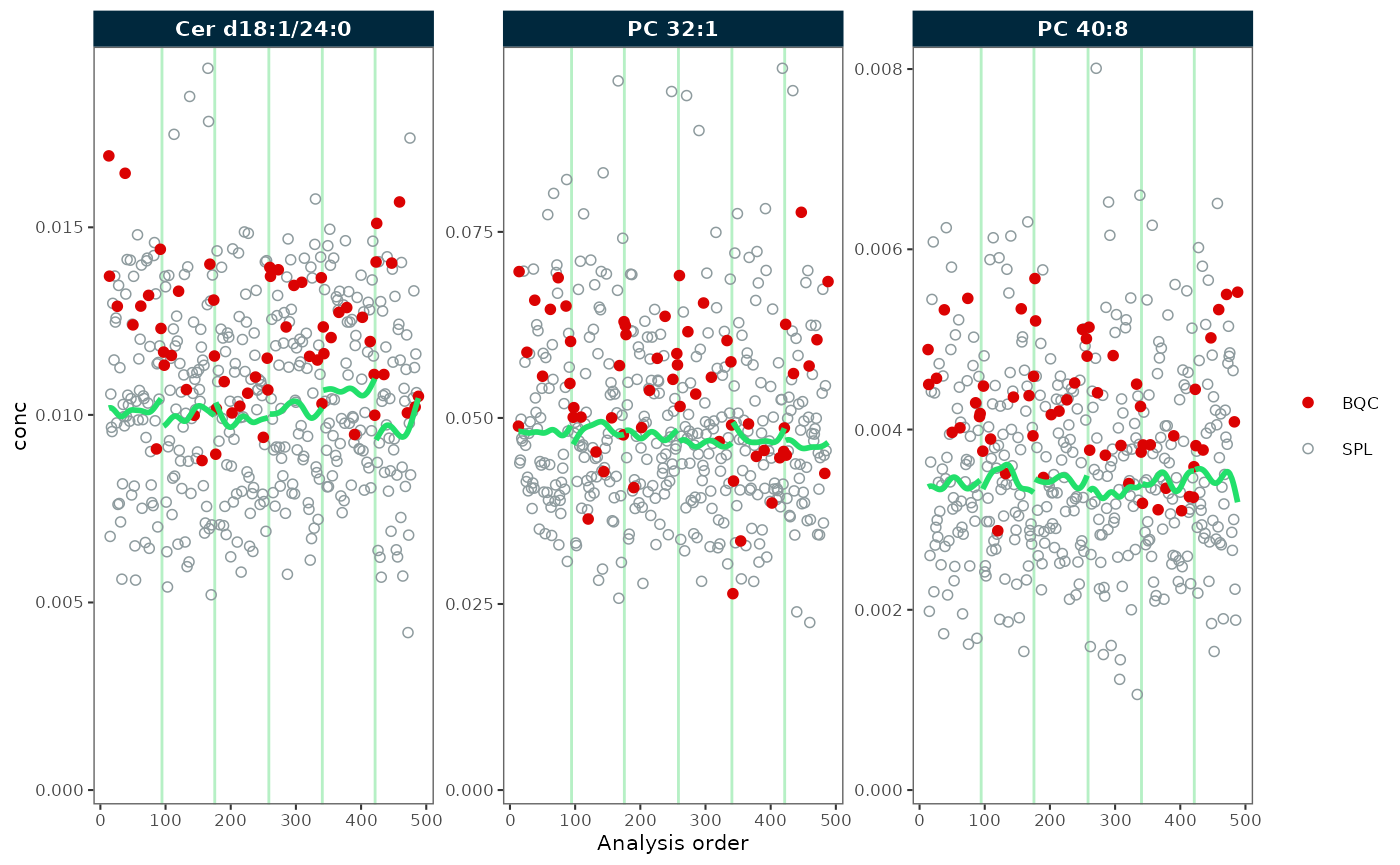

Again, we inspect the data before and after the correction. We observe that the green trendline follows the samples (in grey). After the correction, the trend has been fully smoothed out, resulting in a straight line.

plot_runscatter(mexp_drift, variable = "conc_before", qc_types = c("BQC", "SPL"),
                rows_page = 1, cols_page = 3, show_trend = TRUE)

plot_runscatter(mexp_drift, variable = "conc", qc_types = c("BQC", "SPL"),
                rows_page = 1, cols_page = 3, show_trend = TRUE)

Now, the trends of the study samples appear to be fairly well corrected. However, in this example, the differences compared to the previous QC-based smoothing are not very pronounced.

Within-batch drift correction

In the examples before we applied drift correction across all batches. However, if batch-effects are present that break the drifts, it is recommended to apply drift correction within each batch.

We explore a within-batch drift correction using a sample-based gaussian kernel smoothing from above in this next example, by setting batch_wise = TRUE.

mexp_drift <- correct_drift_gaussiankernel(
  myexp,
  variable = "conc",
  kernel_size = 10,
  batch_wise = TRUE,
  ref_qc_types = "SPL",
  recalc_trend_after = TRUE)
#> ℹ Applying `conc` drift correction...
#> ✔ Drift correction was applied to 3 of 3 features (batch-wise).
#> ℹ The median CV change of all features in study samples was -1.20% (range: -1.88% to -0.61%). The median absolute CV of all features across batches decreased from 26.28% to 25.67%.

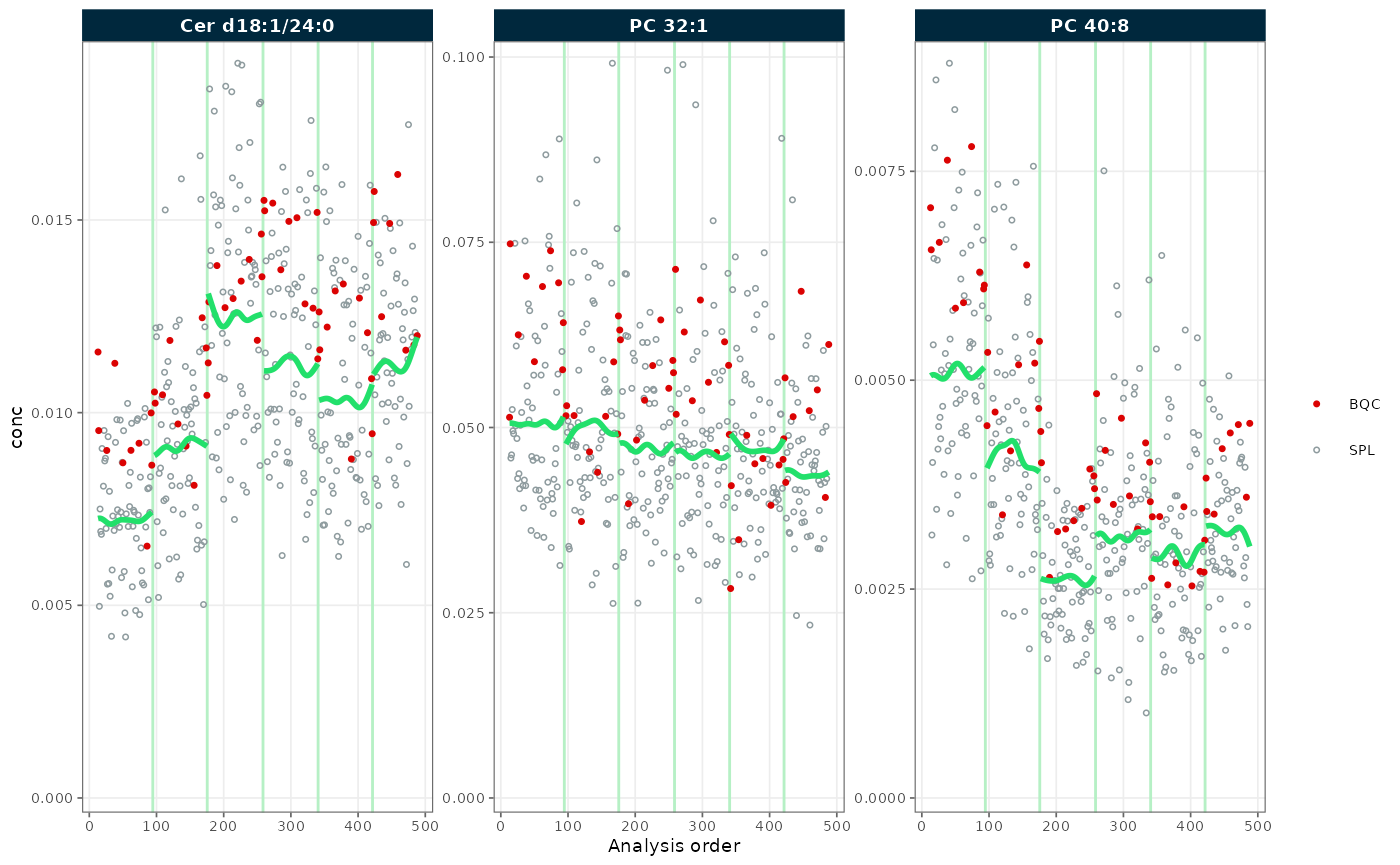

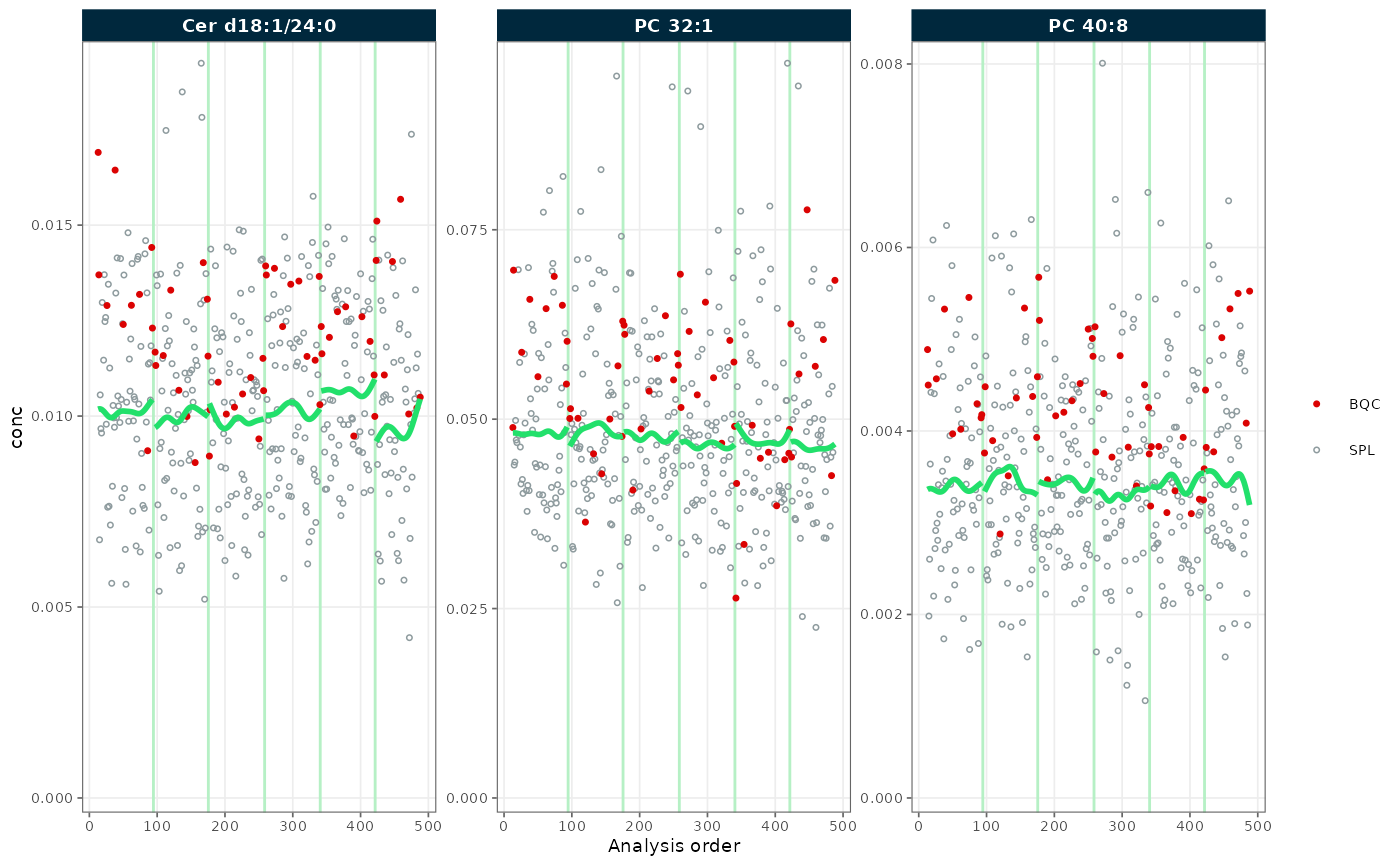

Now, each batch has its own trendline corresponding the trend in each batch of each feature. Contrary to the previous correction across batches, we now observe clear differences in the trends still present after the correction. This is an effect of the correction applied independently to each batch, due to different sample sizes and present batch effects. Therefore, it is often necessary to apply batch correction after batch-wise drift correction

plot_runscatter(mexp_drift, variable = "conc_before", qc_types = c("BQC", "SPL"),
                rows_page = 1, cols_page = 3, show_trend = TRUE)

plot_runscatter(mexp_drift, variable = "conc", qc_types = c("BQC", "SPL"),
                rows_page = 1, cols_page = 3, show_trend = TRUE)

We therefore apply a subsequent batch correction using median-centering, resulting in an alignment of the batches.

mexp_drift <- mrmhub::correct_batch_centering(
  mexp_drift,
  ref_qc_types = "SPL",
  variable = "conc",
  correct_scale = TRUE
)
#> ℹ Adding batch correction on top of `conc` drift-correction.
#> ✔ Batch median-centering of 6 batches was applied to drift-corrected concentrations of all 3 features.
#> ℹ The median CV change of all features in study samples was -5.38% (range: -8.80% to -0.60%).  The median absolute CV of all features decreased from 30.00% to 25.68%.

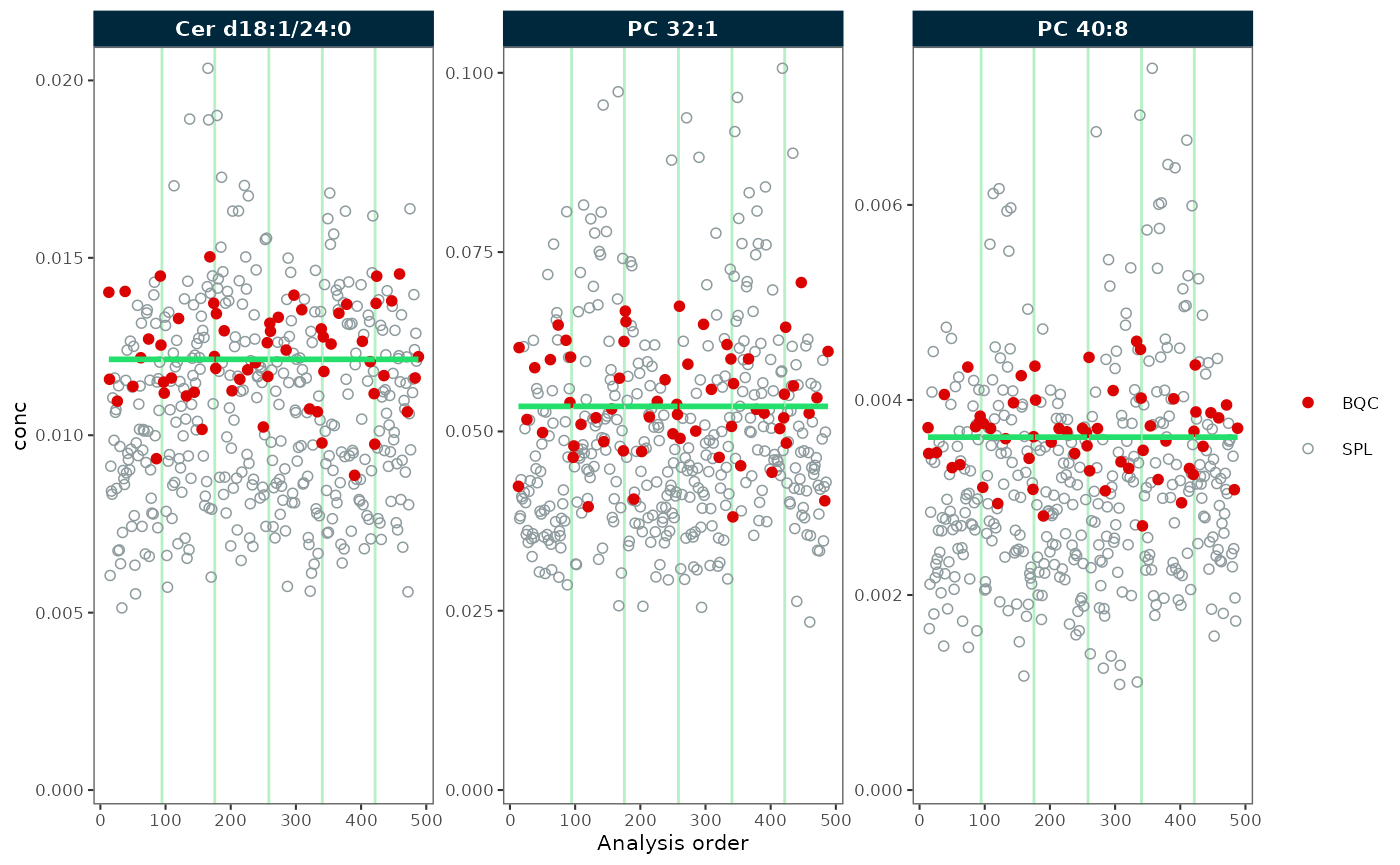

plot_runscatter(mexp_drift, variable = "conc", qc_types = c("BQC", "SPL"),
                rows_page = 1, cols_page = 3, show_trend = TRUE)
#> Generating plots (1 page)...

Batch-effect correction

Batch effects — systematic differences between analytical batches — are corrected by median centering with correct_batch_centering(). The following example uses a separate dataset of seven batches to show the effect clearly.

myexp_batch <- mrmhub::MRMhubExperiment()
myexp_batch <- import_data_csv_wide(
  myexp_batch,
  path = "simdata-u1000-sd100_7batches.csv",
  variable_name = "conc",
  import_metadata = TRUE)

The concentration values of each batch are centered on a reference QC type, here the study samples (ref_qc_types = "SPL"). The correct_scale parameter controls whether the batch-to-batch differences in variance (scale) are also corrected; with correct_scale = FALSE only the median (location) of each batch is aligned.

myexp_batch <- correct_batch_centering(
  data = myexp_batch,
  variable = "conc",
  ref_qc_types = "SPL",
  correct_scale = FALSE
)
#> ℹ Adding batch correction to `conc` data.
#> ✔ Batch median-centering of 7 batches was applied to raw concentrations of all 1 features.
#> ℹ The median CV change of all features in study samples was -30.49% (range: -30.50% to -30.50%).  The median absolute CV of all features decreased from 44.05% to 13.56%.

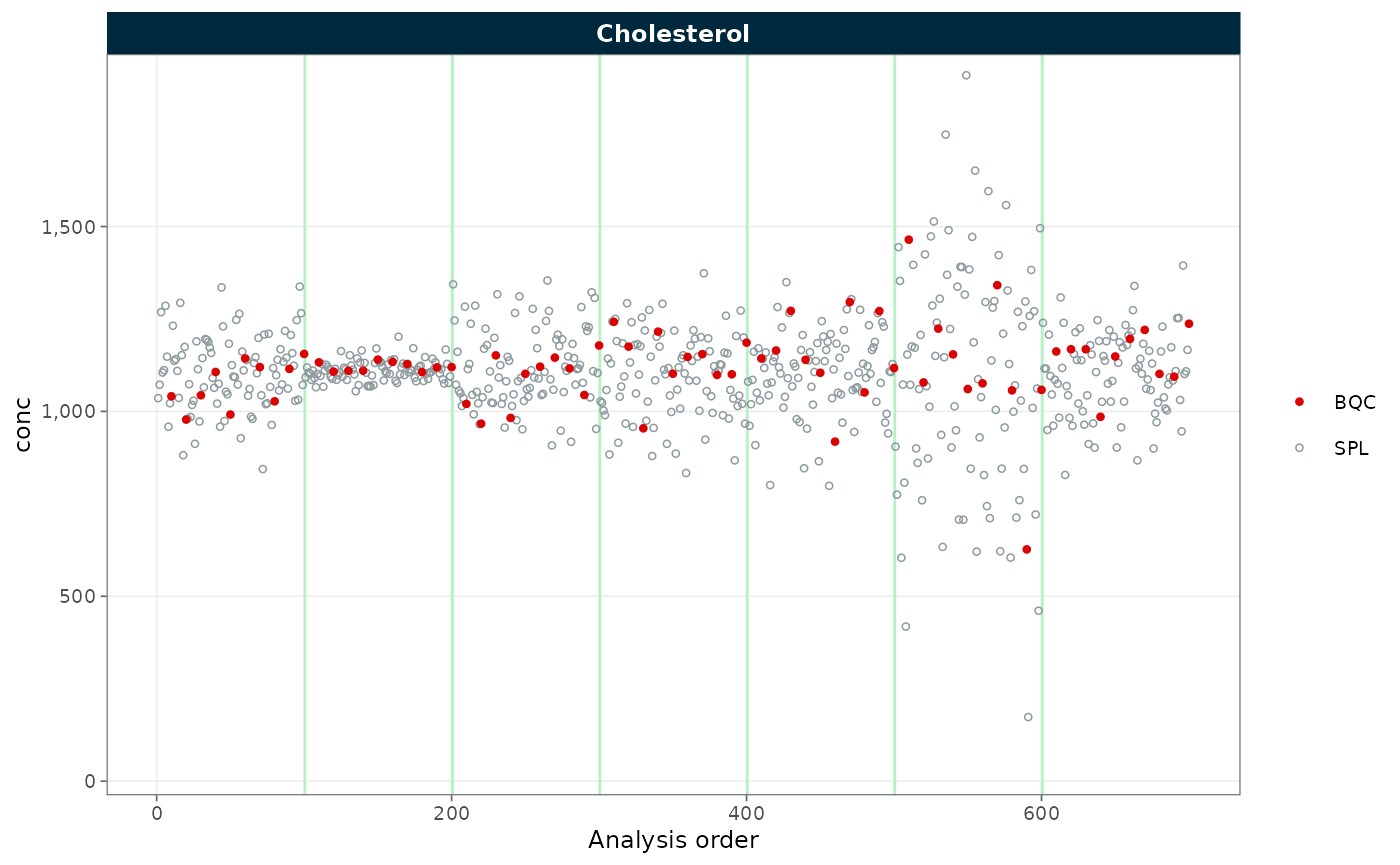

The data before and after batch correction are compared below; the batches are now aligned. If the study samples or other QC types do not follow the reference samples, they may not be corrected appropriately.

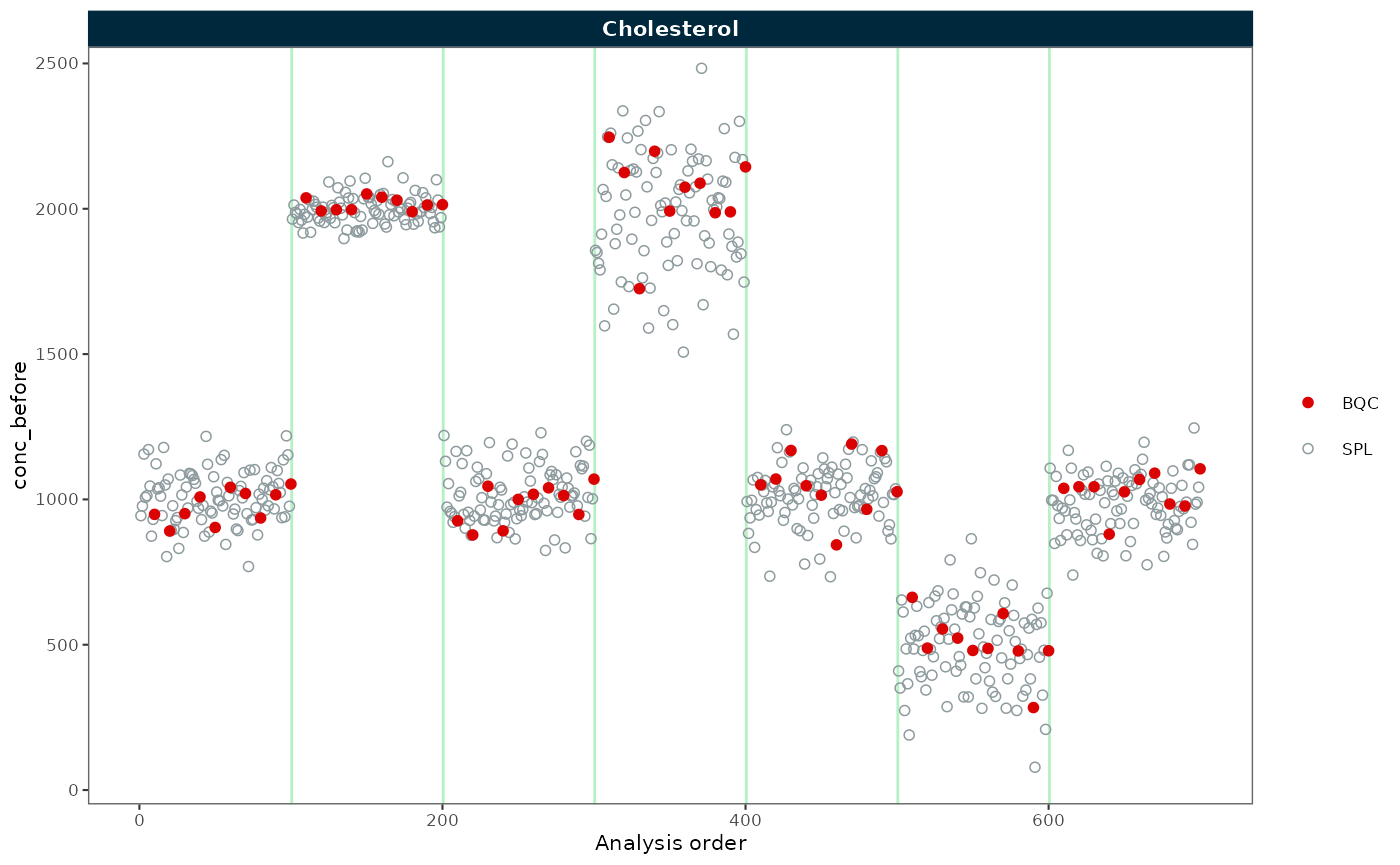

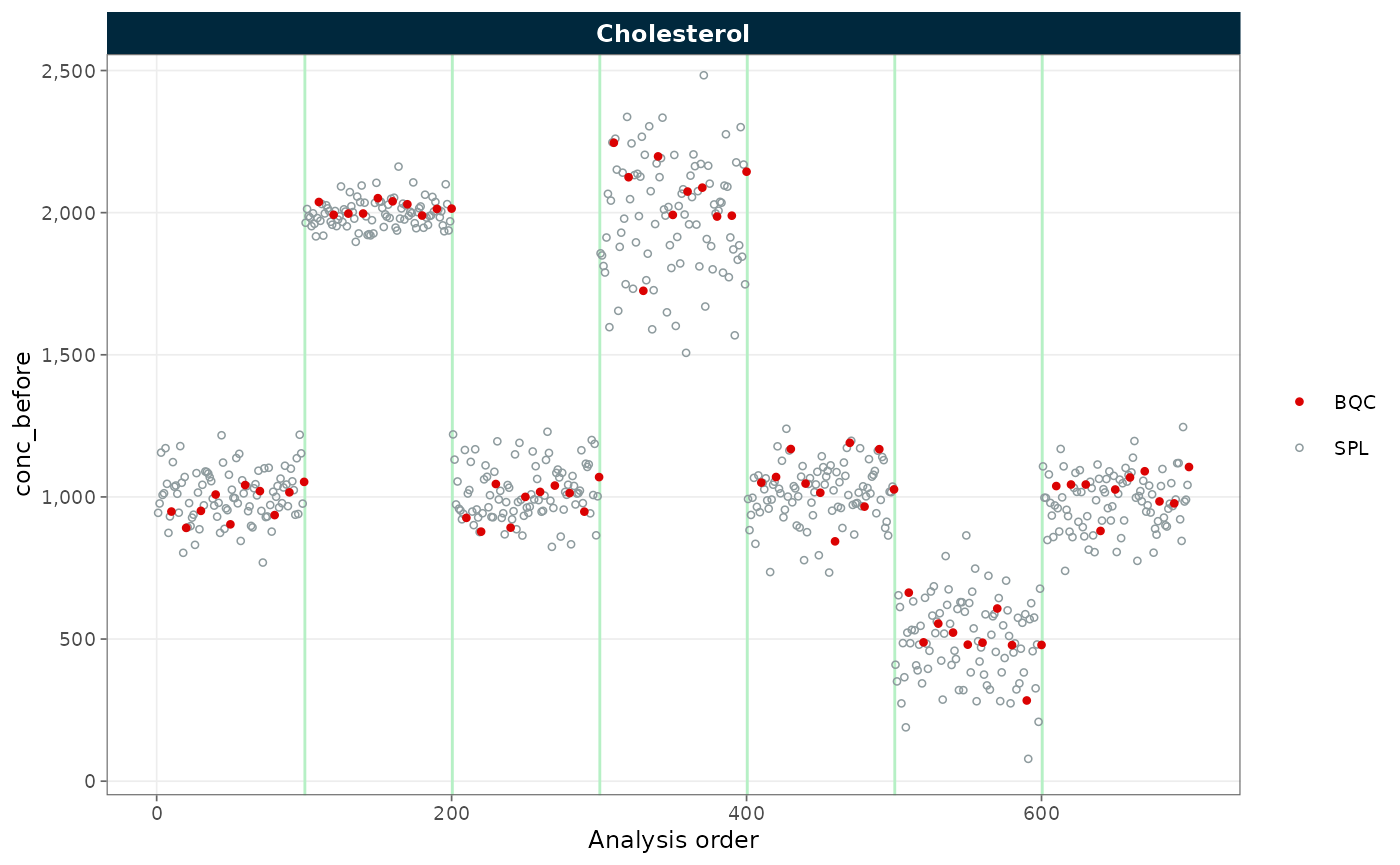

plot_runscatter(myexp_batch, variable = "conc_before", rows_page = 1, cols_page = 1)

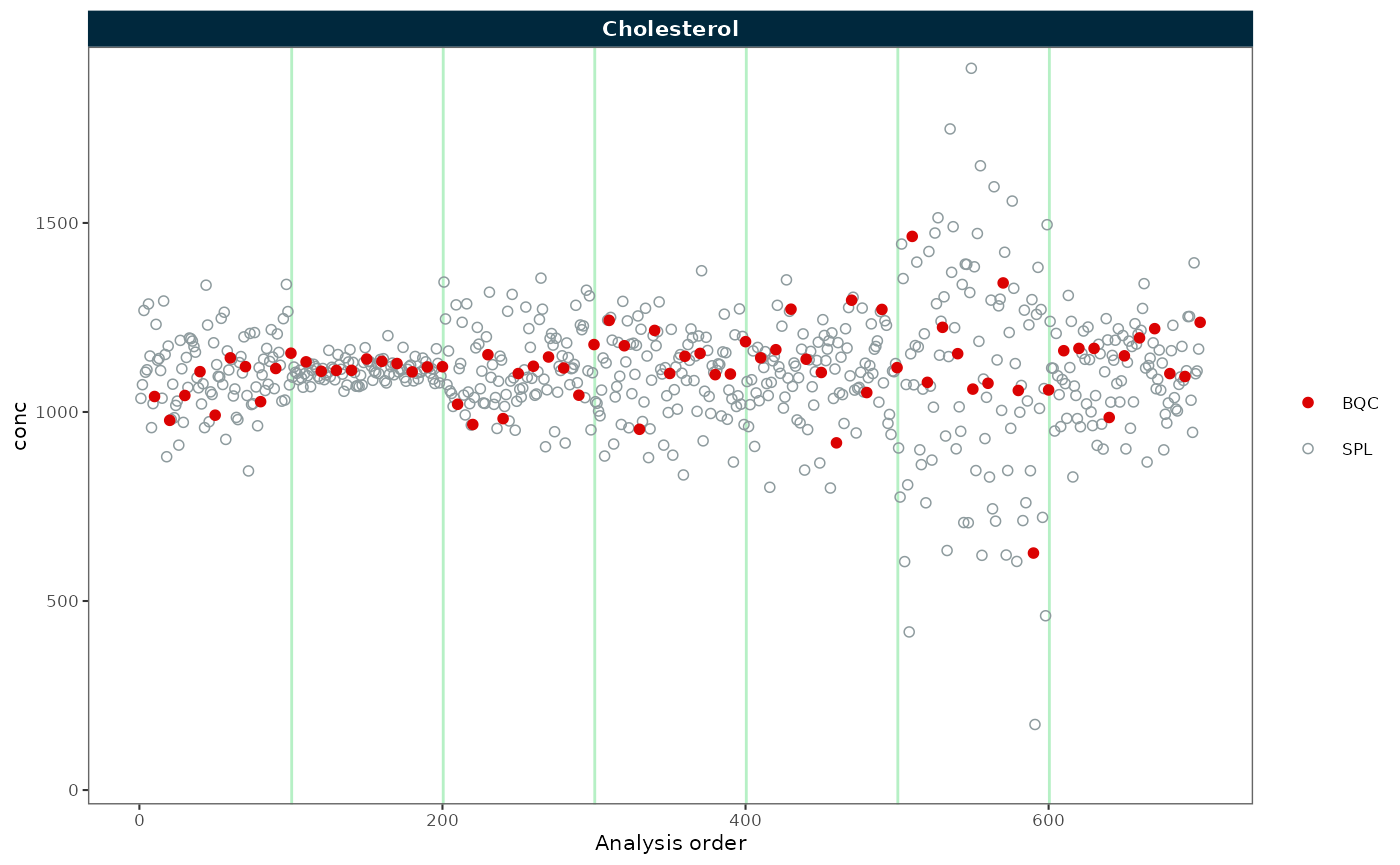

plot_runscatter(myexp_batch, variable = "conc", rows_page = 1, cols_page = 1)

Correcting variance as well as location

Although the batches are aligned, the spread (variance) of the points still varies considerably between batches. This is corrected by scaling the variance with correct_scale = TRUE, after which the spread is fairly consistent across batches.

myexp_batch <- mrmhub::correct_batch_centering(
  myexp_batch,
  ref_qc_types = "SPL",
  variable = "conc",
  correct_scale = TRUE
)

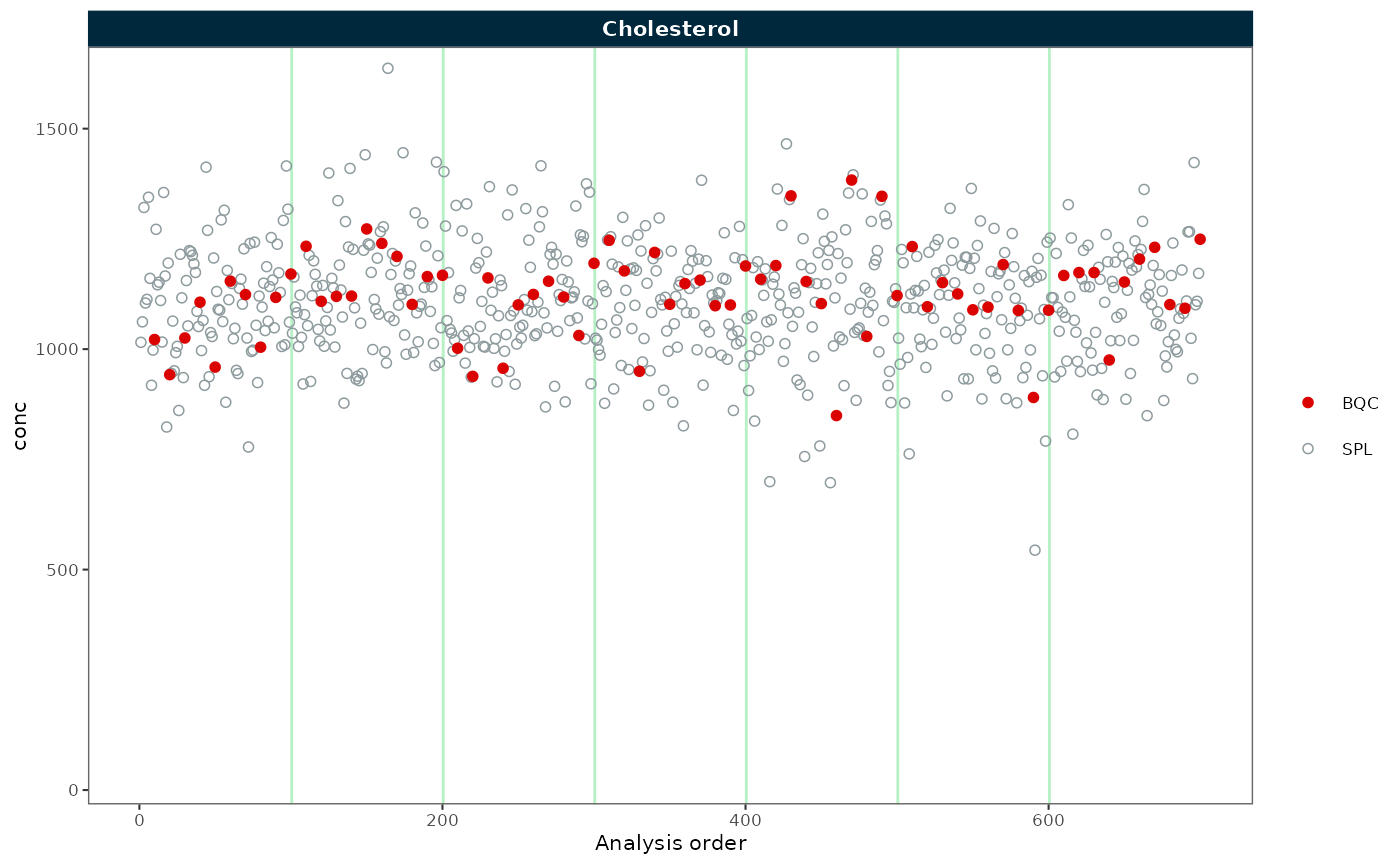

plot_runscatter(myexp_batch, variable = "conc", rows_page = 1, cols_page = 1)

Method comparison

MRMhub provides four drift correction methods. Loess and cubic spline are typically used with QC samples as the reference, gaussian kernel smoothing with study samples; a fourth method, generalized additive model (GAM) smoothing via correct_drift_gam(), is also available. The method comparison below summarises the typical use cases of the three most common — see the Drift and Batch Correction (reference) for the full parameter description of all four.

Method	Function	Reference samples	Typical use
Loess	correct_drift_loess()	QC samples	Frequent QC injections; smooth trends; robust to single-point outliers
Cubic Spline	correct_drift_cubicspline()	QC samples	Frequent QC injections; flexible curves; sensitive to outlier QC points
Gaussian Kernel	correct_drift_gaussiankernel()	Study samples	Sparse QCs; only suitable for large, well-randomised sample sets

Loess drift correction

Loess uses locally weighted polynomial regression and is less sensitive to individual outlier QC points than cubic spline. The span parameter controls smoothness (higher = smoother).

mexp_drift_loess <- correct_drift_loess(
  myexp,
  variable = "conc",
  batch_wise = TRUE,
  ref_qc_types = "BQC",
  recalc_trend_after = TRUE)
#> ℹ Applying `conc` drift correction...
#> ! 4 of 41 TQCs, 3 of 3 LTRs were excluded from correction as they fall outside the regions spanned by the QCs/samples used for smoothing (BQC).
#> ✔ Drift correction was applied to 3 of 3 features (batch-wise).
#> ℹ The median CV change of all features in study samples was 0.33% (range: 0.02% to 1.08%). The median absolute CV of all features across batches increased from 26.28% to 27.36%.

Inspect the result with plot_runscatter() before exporting.

Export corrected data

Next, we can either continue to work with the corrected data using MRMhub functions or export the data.

save_dataset_csv(
  mexp_drift,
  path = "drift-batch-corrected-conc-data.csv",
  variable = "conc",
  filter_data = FALSE
  )
#> ✔ Concentration values for 498 analyses and 3 features have been exported to 'drift-batch-corrected-conc-data.csv'.
