Compare feature variability before and after normalization

Evaluates the effectiveness of normalization by comparing feature variability (measured as %CV) in QC and/or study samples before and after normalization. The comparison is visualized through one of three plot types:

Scatter plot: CV values before vs after normalization
Difference plot: (CV after - CV before) vs mean CV
Ratio plot: log2 of (CV after / CV before) vs mean CV

Features can be grouped and visualized by their feature class using facets.

The resulting visualization helps assess whether normalization improved measurement precision across different features and sample/QC types.

Usage

plot_normalization_qc(
  data = NULL,
  before_norm_var,
  after_norm_var,
  plot_type,
  qc_types = NA,
  facet_by_class = FALSE,
  y_shared = FALSE,
  filter_data = FALSE,
  include_qualifier = FALSE,
  cv_threshold_value = 25,
  x_lim = c(NA_real_, NA_real_),
  y_lim = c(NA_real_, NA_real_),
  cols_page = 5,
  point_size = NULL,
  point_alpha = 0.5,
  font_base_size = NULL,
  autoscale = TRUE,
  legend_position = NULL,
  legend_size = NULL,
  show_legend_title = NULL,
  title = NULL,
  strip_text_size = NULL,
  strip_bg_color = NULL,
  legend_bg_alpha = NULL
)

Arguments

data: A MRMhubExperiment object.
before_norm_var: A string specifying the variable from the QC metrics table to be used for the x-axis (before normalization).
after_norm_var: A string specifying the variable from the QC metrics table to be used for the y-axis (after normalization).
plot_type: A character string specifying the type of plot to generate. Must be one of "scatter", "diff", or "ratio". Selecting "scatter" plots the before and after normalization CV values as a scatter plot, "diff" plots the difference between the two CV values against the average CV, and "ratio" plots the log2 ratio of the two CV values against the average CV.
qc_types: A character vector specifying the QC types to plot. It must contain at least one element. The default NA plots any of the non-blank QC types ("SPL", "TQC", "BQC", "HQC", "MQC", "LQC", "NIST", "LTR") present in the dataset.
facet_by_class: If TRUE, facets the plot by feature_class, as defined in the feature metadata.
y_shared: Logical; if TRUE, all facets share the same y-axis scale. If FALSE (default), each facet has its own y-axis scale.
filter_data: Whether to use all data (default) or only QC-filtered data (filtered via filter_features_qc()).
include_qualifier: Whether to include qualifier features (default is TRUE).
cv_threshold_value: Numerical threshold value to be shown as dashed lines in the plot (default is 25).
x_lim: Numeric vector of length 2 for x-axis limits. Use NA for auto-scaling (default is c(NA, NA)).
y_lim: Numeric vector of length 2 for y-axis limits. Use NA for auto-scaling (default is c(NA, NA)). A fixed lower limit of 0 would clip the negative values of plot_type = "diff" and "ratio", which are the features whose CV the normalization reduced.
cols_page: Number of facet columns per page, representing different feature classes (default is 5). Only used if facet_by_class = TRUE.
point_size: Size of points in millimeters (default is 1).
point_alpha: Transparency of points (default is 0.5).
font_base_size: Numeric. Base font size (in points) for plot text; all plot text scales proportionally with this value. NULL (default) uses the global default set by mrmhub_set_plot_defaults() if one is in effect, otherwise an automatic size (derived from the facet-column count on paged plots, or the per-plot default shown in the Usage section above).
autoscale: Logical. When TRUE (default), font_base_size and point_size left as NULL are sized automatically from cols_page (more facet columns per page give smaller text and points). Any value passed explicitly always takes precedence. When FALSE, unset sizes fall back to the single-plot defaults.
legend_position: Optional legend placement. One of "right", "left", "top", "bottom", "none"; a corner keyword "inside-tr", "inside-tl", "inside-br", "inside-bl"; or a numeric c(x, y) in [0, 1] coordinates. NULL (default) keeps the current placement, unless a global default is set with mrmhub_set_plot_defaults().
legend_size: Optional single multiplier of font_base_size (when <= 3) or absolute point size (when > 3) that scales the whole legend: text, title, key and the plotted symbols. NULL (default) leaves the legend unchanged.
show_legend_title: Logical. NULL (default) keeps the legend title, unless a global default is set with mrmhub_set_plot_defaults(); FALSE hides it, TRUE forces it shown.
title: Optional plot title. NULL (default) or NA shows no title; a character string is shown as the title.
strip_text_size: Optional facet strip text size, as a multiplier of font_base_size (when <= 3) or an absolute point size (when > 3). NULL (default) inherits from font_base_size.
strip_bg_color: Optional facet strip background fill colour. The strip text colour is set automatically for contrast (white on a dark fill, black on a light one). NULL (default) keeps the house dark-navy strips.
legend_bg_alpha: Optional opacity ([0, 1]) of a white legend background box, useful for a readable inside legend drawn over points. NULL (default) leaves the legend background unchanged.

Value

A ggplot object representing the scatter plot comparing CV values before and after normalization.

Details

The function preselects the corresponding variables from the QC metrics and uses plot_qcmetrics_comparison() to visualize the results.

The data must be normalized before using normalize_by_istd() followed by calculation of the QC metrics table via calc_qc_metrics() or filter_features_qc(), see examples below.
When facet_by_class = TRUE, then the feature_class must be defined in the metadata or retrieved via specific functions, e.g., parse_lipid_feature_names().

Examples

# Example usage:
mexp <- lipidomics_dataset
mexp <- normalize_by_istd(mexp)
#> ! Interfering features defined in metadata, but no correction was applied. Use `correct_custom_interferences()` to correct.
#> ✔ 20 features normalized with 9 ISTDs in 499 analyses.
mexp <- calc_qc_metrics(mexp)
#> ✔ QC metrics calculated for 29 features across 7 sample types, including normalized-intensity and response-curve statistics.

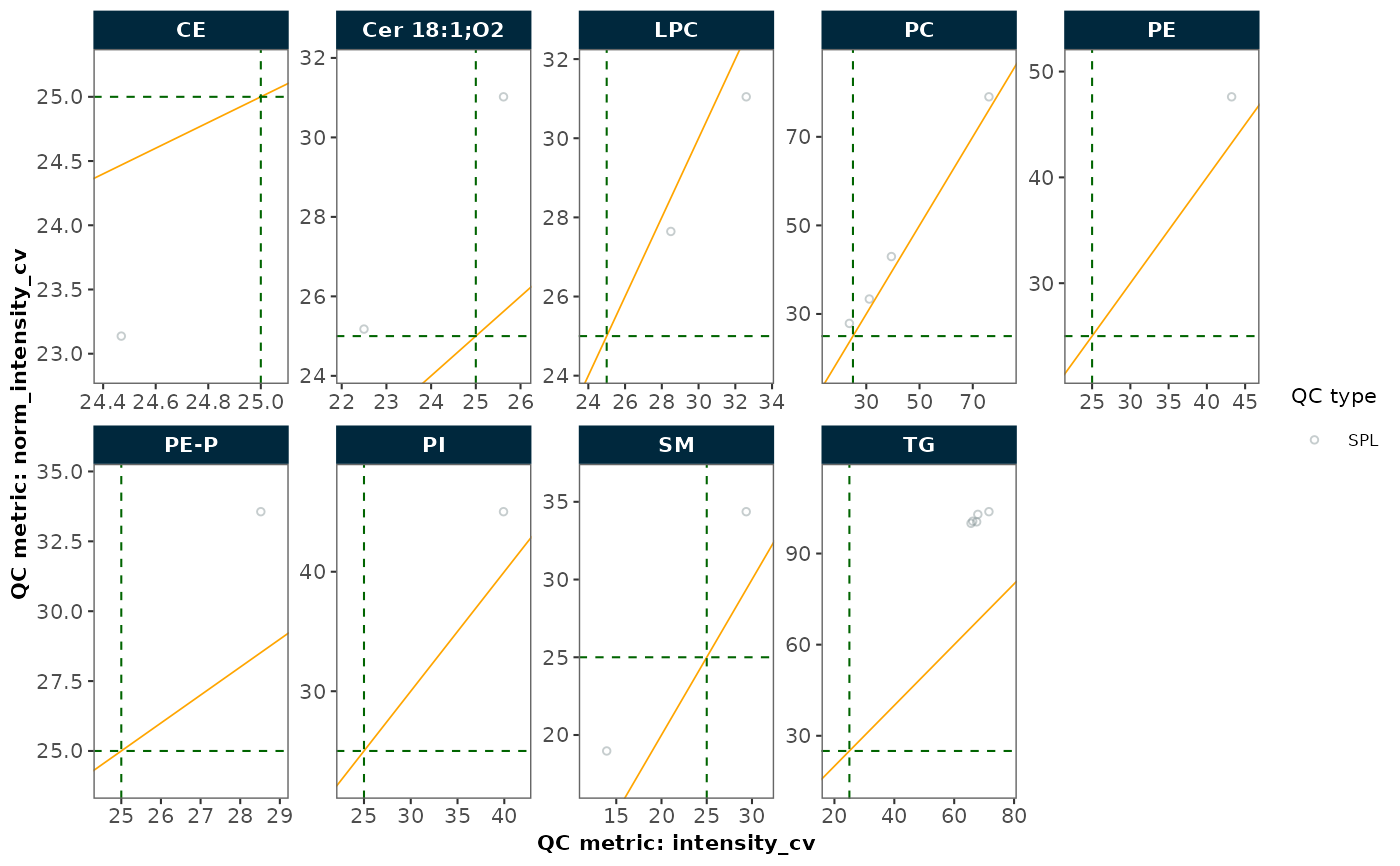

plot_normalization_qc(
  data = mexp,
  before_norm_var = "intensity",
  after_norm_var = "norm_intensity",
  plot_type = "scatter",
  qc_types = "SPL",
  filter_data = FALSE,
  facet_by_class = TRUE,
  cv_threshold_value = 25
)
